EC12E1212S00N5EVX
Key Features:Insulated shaft
Mounting Orientation: Vertical
Shaft Configuration:Diverse shafts (Flat , Knurled Type, etc.)
Shaft Length:Optional
Number of Pulse & detent:Optional (12/12 ; 12/00 ; 12/24 ; 24/00 ; 24/24)
Push-on switch:Without

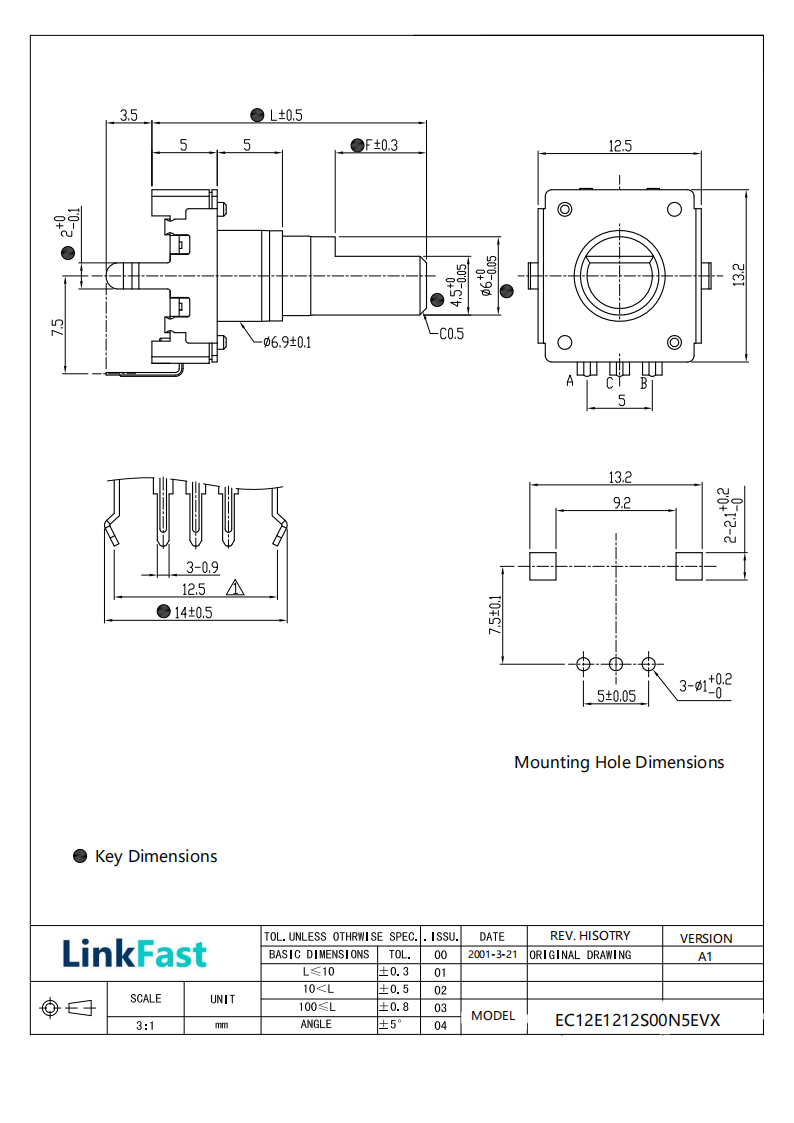

Dimension Drawing
Specification
Product FAQ
| Operating temperature range | -40℃ ～ +85℃ | |||
| Electrical performance | Ratings | 10mA 5V DC | ||
| Output signal | Two phase A and B | |||
| Max./min. operating current | 10mA/1mA | |||
| (Resistive load) | ||||
| Insulation resistance | 100MΩ min. 250V DC | |||
| Voltage proof | 300V AC for 1 minute or 360V AC for 2s | |||
| Mechanical performance | Detent torque | 10±7mN・m | ||
| Push-pull strength | 10Kgf Min | |||
| Durability | Operating life | 30,000 cycles | ||
Output Wave
Sliding Noise
At R=5kΩ Chattering: 3ms max. Bounce: 2ms max.
Product Type：Single-shaft Type
Soldering Conditions
Reference for Dip Soldering
Preheating
Soldering surface temperature
100℃ max.
Heating time
2 min. max.
Dip soldering
Soldering temperature
260±5℃
Soldering time
5±1s
No. of solders
2 time max.
Reference for Hand Soldering
Tip temperature
350℃ max.
Soldering time
3s max.
No. of solders
1 time
Cautions
Pulse Count Processing
When designing the pulse count for encoders, it is necessary to take into account factors such as operating speed, sampling time, and masking time. These parameters must be verified prior to encoder application. For your pulse count design, we recommend integrating C/R filters into your circuit as illustrated below.
