P081N0T5XHX-B20K0C
Mounting Orientation: Horizontal
Dimensions: 8mm Size
Number of resistor elements: Single-unit
Shaft types: Flat
Length of the shaft: 12.5mm
Total resistance: 20KΩ
Resistance taper: 0B

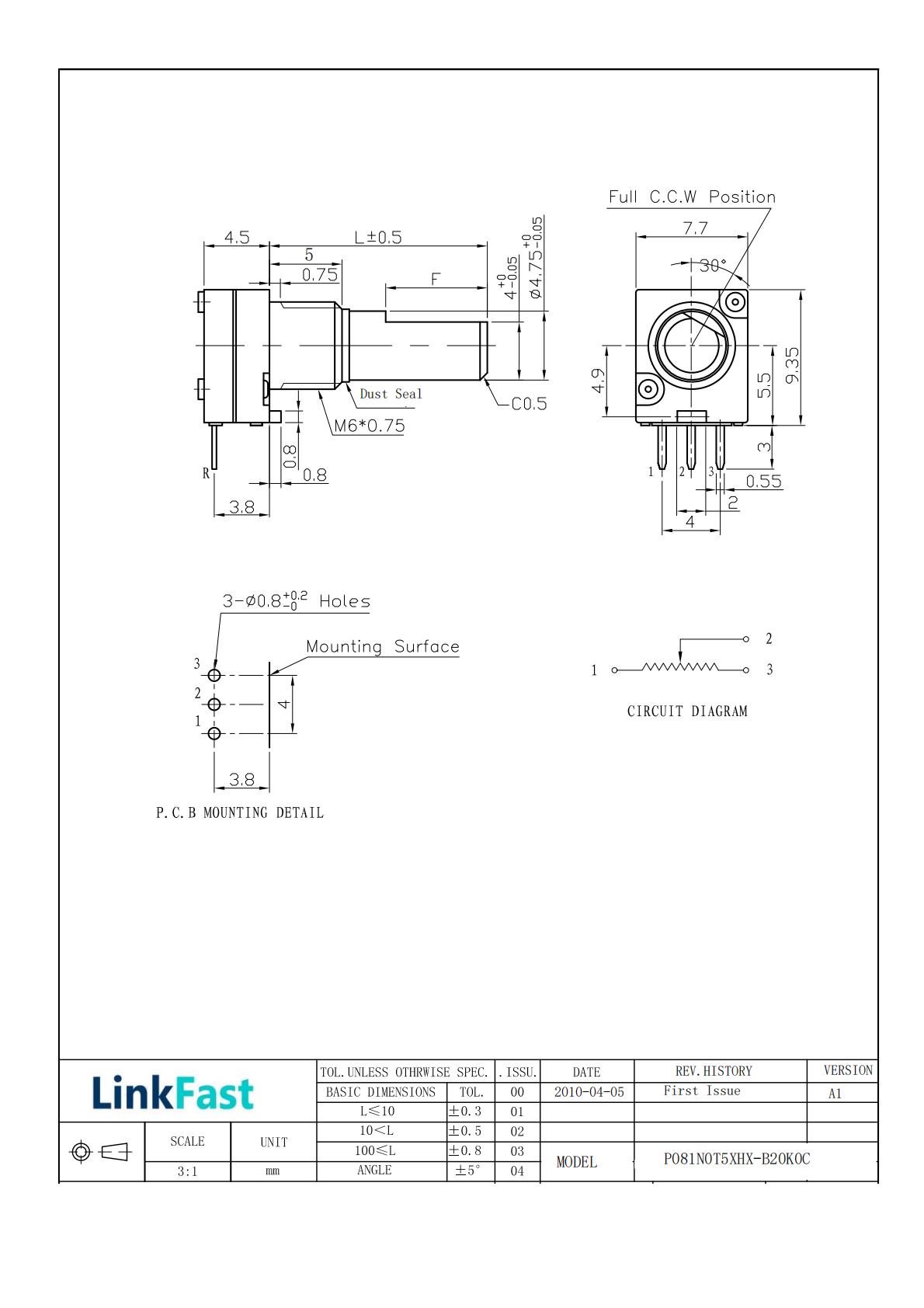

Dimension Drawing
Specification
Product FAQ
| Operating temperature range | -10℃ to +70℃ | |
| Electrical performance | Total resistance tolerance | ±10% |
| Rated power | 0.05W | |
| Maximum operating voltage | 50V AC, 10V DC | |
| Residual resistance | 20Ω max. | |
| Insulation resistance | 100MΩ min. 250V DC | |
| Voltage proof | 300V AC for 1 minute | |
| Mechanical performance | Total rotational angle | 300°±5° |
| Rotational torque | 2 to 25mN·m | |
| Stopper strength | 0.3N·m | |
| Push-pull strength | 80N max. | |
| Vibration | 10 to 55 to 10Hz/min., the amplitude is 1.5mm for all the frequencies, in the 3 direction of X, Y and Z and for 2 hours respectively | |
| Durability | Operating life | 30,000 cycles |
