P091N0N5NVX-B10K0C

Mounting Orientation: Vertical

Dimensions: 9mm Size

Number of resistor elements: Single-unit

Shaft types: Flat

Length of the shaft: 20mm

Total resistance: 10KΩ

Resistance taper: 0B

Consult Now

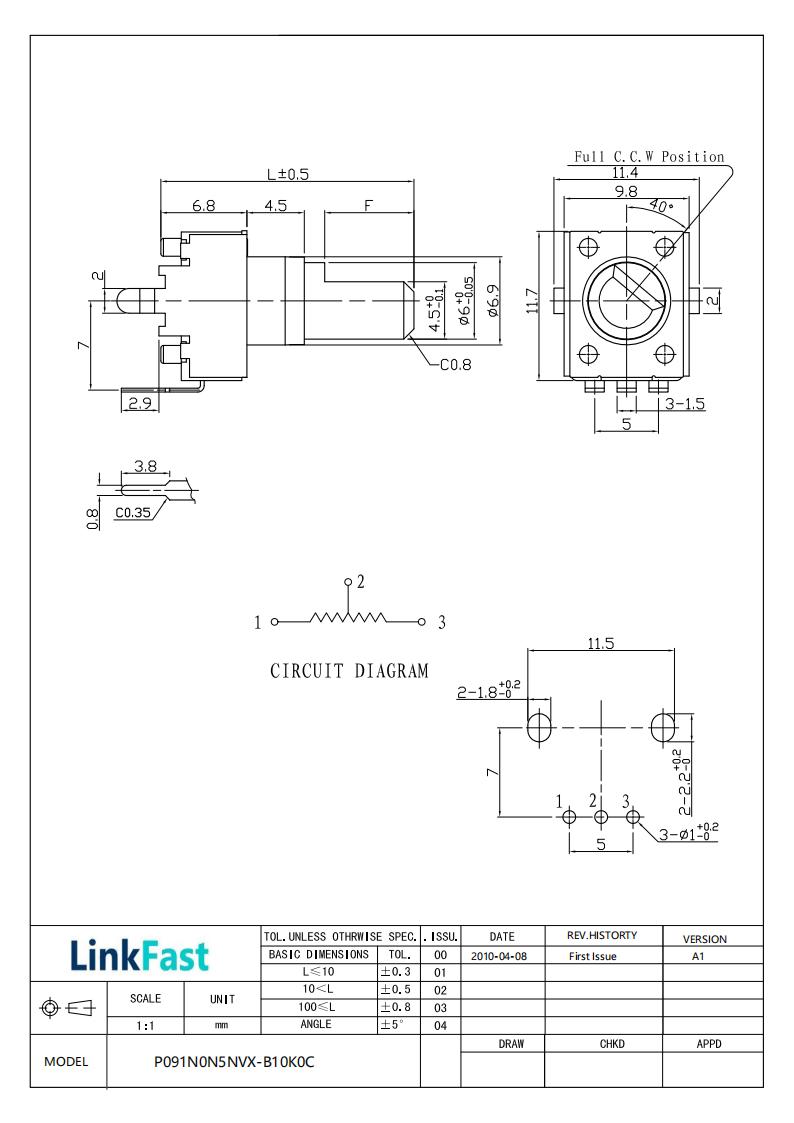

Dimension Drawing

Specification

Product FAQ

Operating temperature range		-10℃ to +70℃

Electrical performance	Total resistance tolerance	±10%
	Rated power	0.05W
	Maximum operating voltage	50V AC, 20V DC
	Residual resistance	20Ω max.
	Insulation resistance	100MΩ min. 250V DC
	Voltage proof	300V AC for 1 minute


Mechanical performance	Total rotational angle	285°±5°
	Rotational torque	10 to 130gf.cm
	Stopper strength	0.3N·m
	Push-pull strength	70N max.
	Vibration	10 to 55 to 10Hz/min., the amplitude is 1.5mm for all the frequencies, in the 3 direction of X, Y and Z and for 2 hours respectively

Durability	Operating life	10,000 ±200cycles

Q1. What is an encoder?

An encoder is a device that converts the rotation or movement of a control shaft into digital electrical signals. Its output can be divided into two types: absolute and incremental. These signals are detected either by mechanical contact (using electrical contacts) or non-contact methods such as optical or magnetic sensing. Link Fast Group mainly provides contact-type encoders that use sliding contacts and pattern switches.
